- Model Name
- Lenovo ThinkCentre M920s (Small Form Factor)
- Dimensions (WxDxH)
- 92.5 x 290.5 x 343.5 mm (3.6 x 11.4 x 13.5 inches)
- Weight
- Around 6.0 kg (13.2 lbs)
- Operating System
- Windows OS
- PROCESSOR & GRAPHIC OPTIONS
- #3
- Intel® Core™ i7-8700 Processor (3.0 GHz Max Turbo Frequency Up to 4.1GHz) 12 MB Intel® Smart Cache, 6-Cores, 6 Threads | Intel® UHD Graphics 630
- #4
- Intel® Core™ i7-9700 Processor (3.00GHz up to Max Turbo Frequency 4.70GHz) 12 MB Intel® Smart Cache, 8-Cores 8 Threads | Intel® UHD Graphics 630:
- #5
- Intel® Core™ i5-8600 Processor (3.1GHz up to 4.3GHz Max Turbo Frequency) 9 MB Intel® Smart Cache, 6-Cores 6 Threads | Intel® UHD Graphics 630
- #6
- Intel® Core™ i5-9500 Processor (3.0GHz Up To 4.4GHz Max Turbo Frequency) 9 MB Intel® Smart Cache, 6-Cores 6 Threads | Intel® UHD Graphics 630
- #7
- Intel® Core™ i5-9600 Processor (3.1GHz Up to 4.6GHz Max Turbo Frequency) 9 MB Intel® Smart Cache, 6 Cores 6 Threads | Intel® UHD Graphics 630
- GRAPHIC CARD DISCRETE OPTIONS
- #1
- AMD Radeon™ 520 2GB GDDR5
- #2
- NVIDIA® GeForce® GT 730 2GB GDDR5
- Memory
- 8GB RAM / 16GB RAM / 32GB RAM
- Storage
- 256GB SSD / 500GB SSD / 512GB SSD / 1TB SSD / 2TB SSD
- Bays
- 1x 2.5"" disk bay (optional, or bay comes with disk) / 1x 3.5"" disk bay / 1x slim ODD bay
- Expansion Slots
- One PCIe 3.0 x1, low-profie (length < 150mm, height < 68mm) | One PCIe 3.0 x16 (x4 signal), low-profie (length < 150mm, height < 68mm) | One PCIe 3.0 x16, low-profie (length < 150mm, height < 68mm) | One dummy slot, only bracket for optional port extension |Two M.2 slots (one for WLAN, one for SSD)
- Optical Drive OPTIONS
- DVD-ROM, SATA 1.5Gb/s, slim (9.0mm) / DVD burner (DVD±RW), SATA 1.5Gb/s, slim (9.0mm) / None
- Card Reader OPTIONS
- 7-in-1 card reader / No card reader
- Audio Chip
- High Definition (HD) Audio, Realtek® ALC233VB2 codec
- Speakers
- Single speaker, 1W x1
- WLAN + Bluetooth®** OPTIONS
- Realtek RTL8821CE, 802.11ac Dual Band 1x1 Wi-Fi® + Bluetooth 4.2, M.2 card / Realtek RTL8822BE, 802.11ac Dual Band 2x2 Wi-Fi + Bluetooth 4.2, M.2 card / Intel Dual Band Wireless-AC 3165, 802.11ac Dual Band 1x1 Wi-Fi + Bluetooth 4.2, M.2 Card / Intel Dual Band Wireless-AC 8265, 802.11ac Dual Band 2x2 Wi-Fi + Bluetooth 4.2, M.2 Card / Intel Wireless-AC 9560, 802.11ac Dual Band 2x2 Wi-Fi + Bluetooth 5.0, Intel vPro technology support, M.2 card / No WLAN and Bluetooth

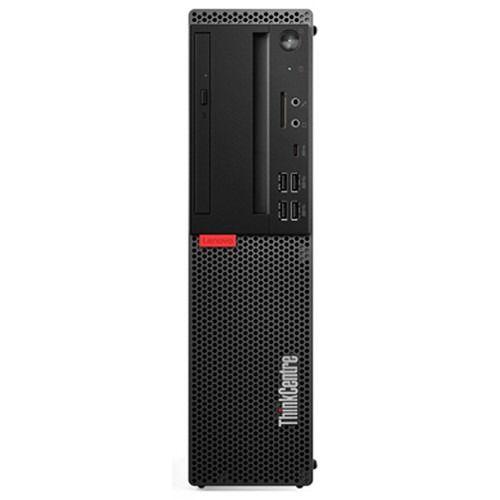

- Front Ports
- 2x USB 3.1 Gen 1 | 2x USB 3.1 Gen 2 | 1x USB-C® 3.1 Gen 1 | 1x headphone / microphone combo jack (3.5mm) | 1x microphone (3.5mm)

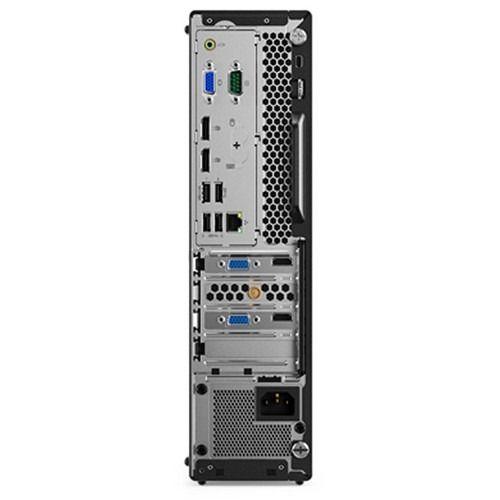

- Rear Ports
- 4x USB 3.1 Gen 1 | 1x VGA | 2x DisplayPort |1x serial (9-pin) | 1x Ethernet (RJ-45) | 1x line-out (3.5mm)
- Security Chip
- Discrete TPM 2.0, TCG certified
- Physical Locks OPTIONS
- (Optional) E-lock / (Optional) Smart Cable Clip / Kensington® Security Slot, 3 x 7 mm / Padlock Loop
- Chassis Intrusion Switch OPTIONS
- Chassis intrusion switch / No chassis intrusion switch
- Fingerprint Reader OPTIONS
- Touch style fingerprint reader on mouse / No fingerprint reader
- BIOS Security
- Administrator password | Power-on password | Hard disk password | Boot sequence control | Boot without keyboard and mouse | Smart USB protection (allows keyboard / mouse only, blocks all storage devices) | Individual USB port disablement
