- Product name

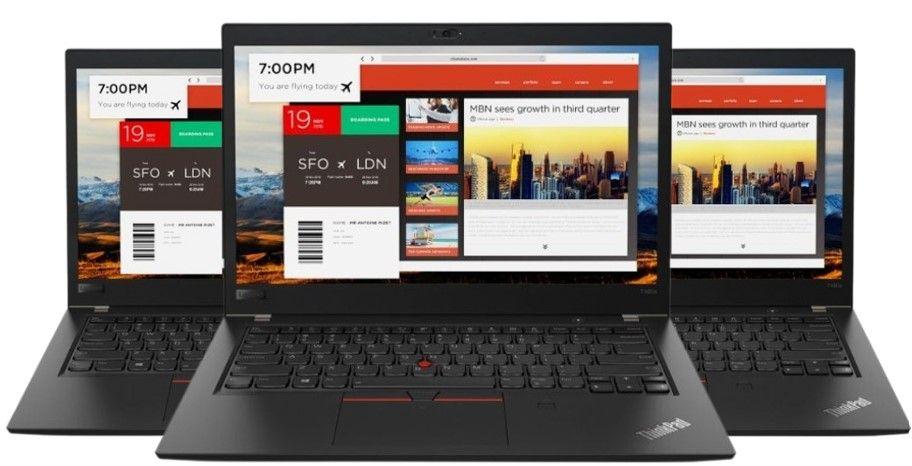

- Lenovo ThinkPad T480s (14-inch)
- Display Type Options
- 14.0-inch (355mm) FHD (1920 x 1080), anti-glare, LED backlight, WVA, 250 nits, 16:9 aspect ratio, 700:1 contrast ratio, 170° viewing angle, supports ThinkPad Privacy Guard on some model
- Operating system
- Windows OS
- Processor & Graphic Options
- Intel® Core™ Processor i5-8250U (1.6GHz Max Turbo Frequency Up to 3.4GHz) 6 MB Intel® Smart Cache, 4-Cores, 8 Threads | Intel® UHD Graphics 620
- Intel® Core™ i5-7300U Processor (2.6GHz Max Turbo Frequency Up to 3.5GHz) 3 MB Intel® Smart Cache, 2 Cores 4 Threads | Intel® HD Graphics 620
- Memory
- 4GB RAM | 8GB RAM | 12GB RAM | 16GB RAM | 20GB RAM | 24GB RAM | 32GB RAM | 64GB RAM
- Storage
- 128GB SSD | 240GB SSD | 256GB SSD | 512GB SSD | 1TB SSD | 2TB SSD | 500GB HDD | 1TB HDD | 2TB HDD
- Optical Drive
- None
- Ports and Connectors
- 2x USB 3.1 Gen 1 (one Always On) | 1x USB 3.1 Type-C Gen 1 (with the function of Power Delivery and DisplayPort) | 1x USB 3.1 Type-C Gen 2 / Thunderbolt 3 (with the function of PD and DP) | HDMI 1.4b, Ethernet (RJ-45) | nano-SIM card slot (WWAN models) | Headphone/Microphone combo jack | optional smart card reader | 4-in-1 reader (MMC, SD, SDHC, SDXC) | Side docking connector, security keyhole
- Ethernet
- Non-vPro model:- Intel Ethernet Connection I219-V (Jacksonville) | vPro model:- Intel Ethernet Connection I219-LM (Jacksonville)
- WLAN + Bluetooth
- Intel Dual Band Wireless-AC 8265, Wi-Fi 2x2 802.11ac + Bluetooth 4.1, M.2 card
- Media reader
- 4-in-1 reader (MMC, SD, SDHC, SDXC)
- Camera (optional)
- HD720p camera with ThinkShutter camera privacy, fixed focus / IR camera and HD720p camera, fixed focus
- Audio support
- HD Audio, Realtek ALC3287 codec / stereo speakers, 1W x 2, Dolby Audio Premium / optional dual array microphone, headphone/microphone combo jack
- Keyboard
- 6-row, spill-resistant, multimedia Fn keys, optional LED backlight
- UltraNav
- TrackPoint pointing device and buttonless Mylar surface multi-touch touchpad
- Security
- Power-on password, hard disk password, supervisor password, security keyhole
- Security chip
- Discrete TPM 2.0, TCG Certified (may be disabled in some region) | vPro (optional):- Intel vPro Technology
- Fingerprint reader (Optional)
- Touch style match on chip fingerprint reader on the palm rest, anti-spoofing technology
- NFC (optional)
- Near Field Communication
- Battery
- Integrated Li-ion 57Wh battery, supports Rapid Charge (0-80% in 60 mins) with 65W USB Type-C AC adapter
- Mil-Spec test
- MIL-STD-810G military testing
- Environment
- EPEAT Silver; ENERGY STAR 6.1; RoHS-compliant
- Dimensions
- 331 mm x 226.8 mm x 18.4 mm (WxDxH)
- Weight
- 1.32kg
